HD30 vs HDP20 Connectors: Metal vs Thermoplastic Housing Differences Explained

HD30 vs HDP20

The key difference in an HD30 vs HDP20 connector comparison is housing material and mechanical performance. HD30 connectors use aluminum housings for increased durability, shielding, and high-vibration resistance, while HDP20 connectors use thermoplastic housings that are lighter, corrosion-resistant, and suitable for many harsh environment applications.

Why Connector Housing Material Matters

Connector performance in harsh environments depends not only on sealing and contacts, but also on housing material.

In industrial and mobile equipment applications, connectors are exposed to:

• Mechanical impact


• Vibration and shock


• Temperature variation


• Moisture and chemical exposure



The choice between metal and thermoplastic housings directly affects:

• Durability


• Weight


• Environmental resistance


• Long-term reliability



Understanding when to choose HD30 connector systems versus HDP20 connector systems helps ensure correct specification and reduced downtime.

Overview of HD30 and HDP20 Connector Families

Both HD30 and HDP20 connectors are circular connector systems designed for harsh environments.

They share key features:

• Environmental sealing


• Multi-pin configurations


• Compatibility with industrial applications


• Designed for field service and durability



Sealed electrical connector guide

However, their housing materials create important performance differences.

HD30 Connector: Aluminum Housing Performance

The HD30 connector uses an aluminum housing designed for demanding mechanical and environmental conditions.

Key Characteristics

• Metal (aluminum) housing


• High mechanical strength


• Resistance to physical impact


• Suitable for high-vibration environments


• Optional shielding capabilities

Advantages of HD30 Connectors

1. Increased Mechanical Durability

Aluminum housings provide greater resistance to:

• Impact


• Crushing forces


• Mechanical stress



This is important in heavy equipment and industrial machinery.

2. Improved Vibration Resistance

Metal housings provide structural rigidity that helps maintain connector integrity under vibration.

When combined with proper termination and secure mating mechanisms, HD30 connectors perform well in:

• Construction equipment


• Off-road vehicles


• Industrial machinery

3. EMI/RFI Shielding Potential

Metal housings can support electromagnetic shielding when properly configured.

This is beneficial in systems where signal integrity is important.

Considerations for HD30 Connectors

• Heavier than thermoplastic alternatives


• May require corrosion protection depending on environment


• Often higher cost compared to thermoplastic options



Material selection should be based on application requirements.

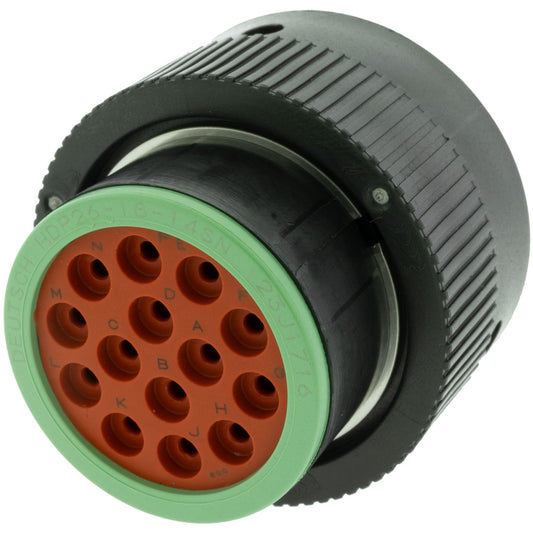

HDP20 Connector: Thermoplastic Housing Performance

The HDP20 connector uses a thermoplastic housing designed for durability and environmental resistance without the weight of metal.

Key Characteristics

• Thermoplastic housing


• Lightweight design


• Corrosion-resistant material


• Sealed for harsh environments

Advantages of HDP20 Connectors

1. Corrosion Resistance

Thermoplastic materials are inherently resistant to:

• Moisture


• Chemicals


• Salt exposure



This makes HDP20 connectors suitable for marine and agricultural environments.

2. Reduced Weight

In applications where weight matters, thermoplastic connectors provide a lighter alternative.

This can be beneficial in:

• Mobile equipment


• Vehicle systems


• Harness design optimization

3. Cost Efficiency

Thermoplastic connectors are generally more cost-effective than metal housings while still providing environmental sealing.

Considerations for HDP20 Connectors

• Lower mechanical strength compared to aluminum


• Less inherent shielding capability


• May not be ideal for high-impact applications

HD30 vs HDP20: Key Differences

Metal vs Thermoplastic Connectors: When to Choose Each

Choose HD30 (Metal Housing) When:

• High mechanical stress is present


• Vibration is severe


• Connector is exposed to impact


• Shielding may be required


• Equipment operates in rugged industrial conditions

Choose HDP20 (Thermoplastic Housing) When:

• Weight reduction is important


• Corrosion resistance is a priority


• Mechanical stress is moderate


• Cost efficiency is a factor


• Application involves moisture or chemical exposure

How Housing Material Affects Reliability

The housing material influences:

• Seal integrity under stress


• Connector lifespan


• Resistance to environmental exposure


• Maintenance requirements



However, housing alone does not determine performance.

Reliable operation also depends on:

• Proper contact selection


• Correct gas-tight crimp termination


• Secure mating mechanisms



Gas-tight crimp termination guide

Are Metal Connectors Always Better?

Not necessarily.

While metal housings offer higher strength, they may introduce:

• Increased weight


• Potential corrosion concerns


• Higher cost



Thermoplastic connectors can provide sufficient durability for many applications while offering advantages in corrosion resistance and weight.

Selection should be based on:

• Application environment


• Mechanical requirements


• Electrical needs


• Serviceability

Application Examples

HD30 Use Cases

• Construction equipment


• Mining machinery


• Industrial automation systems


• High-vibration environments

HDP20 Use Cases

• Agricultural equipment


• Marine systems


• Fleet vehicles


• General industrial applications

How to Choose the Right Connector Housing

When selecting between HD30 and HDP20 connectors, evaluate:

• Mechanical stress levels


• Environmental exposure (moisture, chemicals)


• Weight constraints


• Shielding requirements


• Maintenance and service needs



Always confirm specifications with manufacturer documentation before final selection.

Frequently Asked Questions

What is the difference between HD30 and HDP20 connectors?

HD30 connectors use aluminum housings for increased strength and durability, while HDP20 connectors use thermoplastic housings that are lighter and corrosion-resistant.

Are thermoplastic connectors suitable for harsh environments?

Yes. Thermoplastic connectors can perform well in harsh environments when properly sealed and specified for the application.

When should I use a metal connector housing?

Use metal housings when mechanical strength, vibration resistance, or shielding is required.

Do HD30 connectors resist corrosion?

Aluminum connectors may require coatings or treatments depending on the environment. Always verify specifications.

Are HDP20 connectors less durable than HD30?

HDP20 connectors offer good durability for many applications, but aluminum housings provide higher mechanical strength in extreme conditions.

Conclusion

Choosing between an HD30 connector and an HDP20 connector depends on balancing mechanical strength, environmental resistance, and application requirements.

Metal housings provide increased durability and vibration resistance, while thermoplastic housings offer corrosion resistance and weight reduction.

When properly specified and installed, both connector types can deliver reliable performance in harsh environments.
