Integrated Latch vs Jackscrew Connectors: Mating Mechanisms Explained for Industrial Applications

Connector Latching Mechanisms

Connector latching mechanisms such as integrated latches and jackscrews are used to secure connector halves during mating. Integrated latches provide quick, tool-free engagement for moderate vibration environments, while jackscrew connectors use threaded fastening to deliver higher retention force for demanding, high-vibration or high-pin-count applications.

Why Connector Mating Mechanisms Matter

Connector performance is not determined by sealing and contact design alone. The mating mechanism plays a critical role in maintaining electrical continuity over time.

In harsh environments, connectors are exposed to:

• Continuous vibration


• Mechanical shock


• Thermal expansion and contraction


• Cable movement and strain



If the connector halves are not securely mated, even a properly terminated system can experience:

• Intermittent electrical signals


• Loss of contact alignment


• Increased resistance


• Premature failure



Selecting the correct connector latching mechanisms helps ensure long-term stability and reduces electrical downtime.

Overview of Connector Latching Mechanisms

Two of the most common mating mechanisms used in industrial connectors are:

• Integrated latch systems


• Jackscrew connectors



Each is designed for different application requirements.

Understanding the difference between these systems is important when selecting connectors for heavy equipment, industrial machinery, and field-serviceable systems.

What Is an Integrated Latch Connector?

An integrated latch connector uses a built-in plastic or metal locking feature to secure the connector halves during mating.

How Integrated Latches Work

• Connector halves are pushed together


• A latch snaps into place


• Audible or tactile feedback confirms engagement



This design is commonly used in sealed rectangular connector systems such as the DEUTSCH DT family.

DT vs DTM vs DTP connector comparison

Advantages of Integrated Latch Connectors

• Tool-free installation


• Faster assembly and disconnection


• Compact design


• Suitable for field service



These connectors are widely used in:

• Heavy equipment


• Agricultural machinery


• Fleet vehicles


• General-purpose industrial systems



Limitations of Integrated Latch Connectors

• Lower retention force compared to threaded systems


• Potential for incomplete engagement if not fully seated


• May be less suitable for extreme vibration or high-load cable conditions



Proper installation and inspection are essential to ensure full latch engagement.

What Is a Jackscrew Connector?

A jackscrew connector uses threaded fasteners to mechanically draw the connector halves together and hold them in place.

How Jackscrew Connectors Work

• Connector halves are aligned


• Screws are tightened using a tool


• Threaded engagement pulls connectors together


• Even pressure is applied across the interface



This design is commonly used in circular connectors and high-pin-count applications.

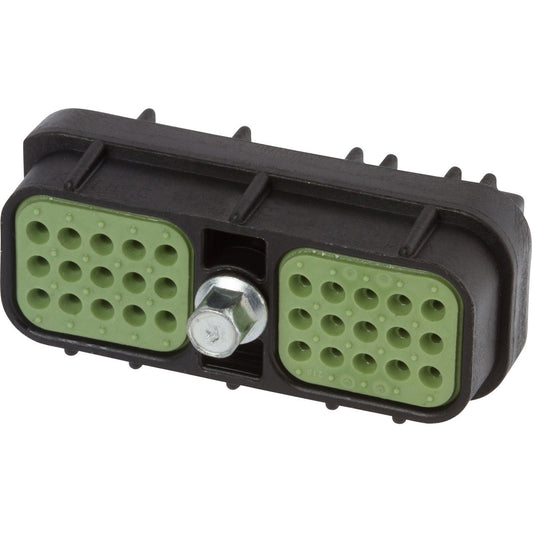

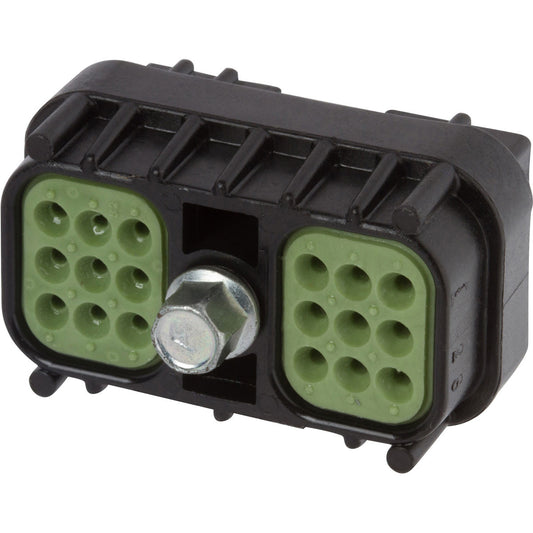

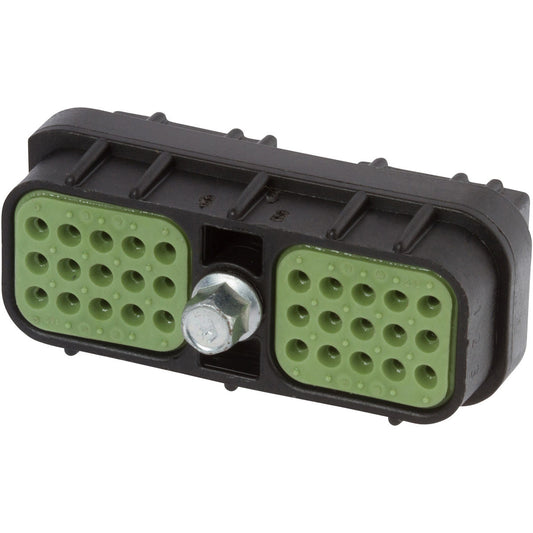

HD30 or MP150 header connectors

Advantages of Jackscrew Connectors

• High retention force


• Secure connection in high vibration environments


• Controlled mating pressure


• Reduced risk of partial engagement



Jackscrew connectors are often used in:

• Industrial equipment


• Military or aerospace systems


• High-current or multi-pin applications


• Environments with heavy mechanical stress

Limitations of Jackscrew Connectors

• Requires tools for installation and removal


• Slower assembly process


• Larger footprint compared to latch systems


• Increased complexity for field service

Integrated Latch vs Jackscrew: Key Differences

Both systems are effective when used in the appropriate application.

How Mating Mechanisms Impact Electrical Reliability

The mating mechanism directly affects:

• Contact alignment


• Contact pressure consistency


• Seal compression


• Resistance stability



Even with a properly designed sealed electrical connector, improper mating can lead to:

• Moisture ingress


• Contact wear


• Increased resistance


• Intermittent faults



Sealed electrical connectors

Additionally, proper termination using a gas-tight crimp termination is required to ensure internal connection integrity.

Gas-tight crimp termination

When to Use Integrated Latch Connectors

Integrated latch connectors are appropriate when:

• Quick installation is required


• Field service is frequent


• Connector size must remain compact


• Moderate vibration conditions are present



These are commonly used in DEUTSCH DT and Metri-Pack connector systems due to their balance of performance and serviceability.

When to Use Jackscrew Connectors

Jackscrew connectors are preferred when:

• Maximum retention force is required


• High vibration or shock is present


• Connector size or pin count is larger


• Controlled mating pressure is critical



These are often used in circular connector systems and high-reliability industrial applications.

Are Jackscrew Connectors Always Better?

Not necessarily.

While jackscrew connectors provide higher retention force, they also introduce:

• Increased installation time


• Tool requirements


• Larger connector size



Integrated latch connectors are often sufficient for many heavy equipment and mobile applications when properly installed.

The correct choice depends on:

• Environmental conditions


• Mechanical stress


• Service requirements


• Connector design constraints

Preventing Failure Through Proper Mating

Regardless of mechanism, proper mating practices are essential.

Best practices include:

• Ensure connectors are fully seated


• Confirm latch engagement or proper torque on jackscrews


• Inspect for alignment before mating


• Avoid forcing misaligned connectors



These steps help prevent:

• Mis-mating


• Seal damage


• Contact misalignment

Frequently Asked Questions

What are connector latching mechanisms?

Connector latching mechanisms are systems used to secure connector halves during mating, such as integrated latches or threaded jackscrews.

What is the difference between latch and jackscrew connectors?

Integrated latch connectors provide quick, tool-free engagement, while jackscrew connectors use threaded fasteners for higher retention force and more secure connections.

Are jackscrew connectors better for vibration?

Jackscrew connectors generally provide higher resistance to vibration due to their threaded locking mechanism.

When should I use an integrated latch connector?

Use integrated latch connectors in applications where quick installation, compact size, and moderate vibration resistance are sufficient.

Can improper mating cause connector failure?

Yes. Improper mating can lead to contact misalignment, seal failure, and increased electrical resistance.

Conclusion

Choosing between integrated latch and jackscrew connectors is a critical decision when evaluating connector latching mechanisms.

Integrated latch systems provide efficient, field-serviceable solutions for many heavy equipment applications, while jackscrew connectors offer higher retention force for more demanding environments.

Proper selection, combined with correct crimping and sealing, helps ensure long-term electrical reliability and reduces downtime.

For applications requiring reliable performance in harsh environments, CCK offers sealed connector systems, including DT family connectors and HD circular connectors, along with compatible contacts and tooling.
