The CAT 175-3700 is ideal for field service and repair of CAT machinery. This 308 piece kit includes:

• 58 connectors ranging from 2 to 12 cavities
• 58 wedges
• 35 front seals
• 30 cavity plugs
• 6 removal tools
• 1 removal pick
• 120 gold plated contacts

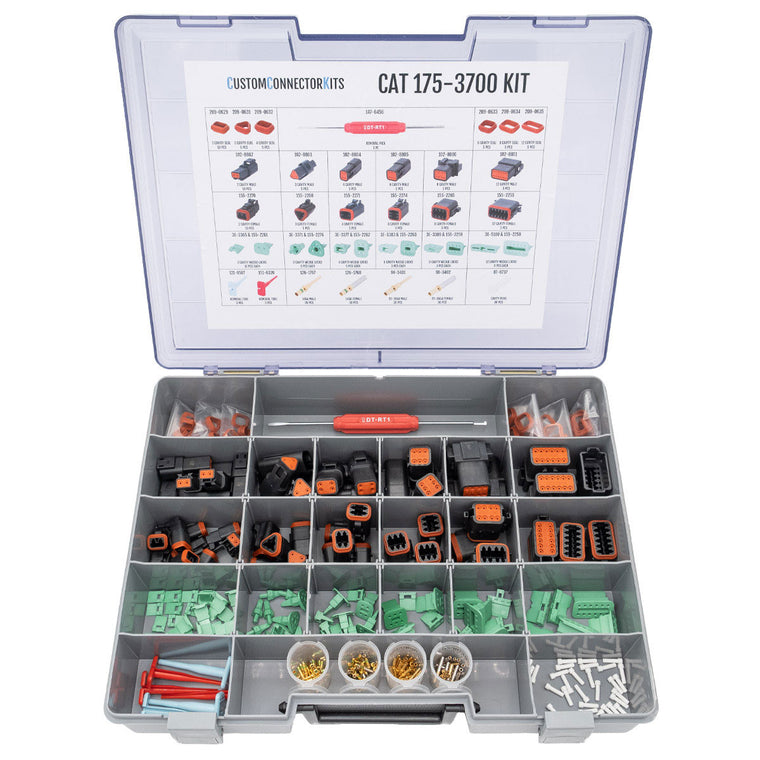

CAT 175-3700 - 308 Piece CAT 2-12 Way Environmentally Sealed Electrical Connector Kit

Qty		Part#		Part Description
3		147-6456		CAT Removal Tool for Wedge Locks & Contacts
10		102-8802		Black 2 Way Receptacle Connector
5		102-8803		3 Cavity Receptacle
5		102-8804		4 Cavity Receptacle
3		102-8805		6 Cavity Receptacle
3		102-8806		8 Cavity Receptacle
3		102-8801		12 Cavity Receptacle
10		3E-3365		2 Cavity Receptacle Wedge
5		3E-3371		3 Cavity Receptacle Wedge
5		3E-3377		4 Cavity Receptacle Wedge
3		3E-3383		6 Cavity Receptacle Wedge
3		3E-3389		8 Cavity Receptacle Wedge
3		3E-5180		12 Cavity Receptacle Wedge
10		155-2270		2 Cavity Plug
5		155-2260		3 Cavity Plug
5		155-2271		4 Cavity Plug
3		155-2274		6 Cavity Plug
35		155-2265		8 Cavity Plug
3		155-2255		12 Cavity Plug
10		155-2261		2 Cavity Plug Wedge
5		155-2276		3 Cavity Plug Wedge
5		155-2262		4 Cavity Plug Wedge
3		155-2263		6 Cavity Plug Wedge
3		155-2259		8 Cavity Plug Wedge
3		155-2258		12 Cavity Plug Wedge
10		209-0629		2 Cavity Seal
5		209-0631		3 Cavity Seal
5		209-0632		4 Cavity Seal
5		209-0633		6 Cavity Seal
5		209-0634		8 Cavity Seal
5		209-0635		12 Cavity Seal
30		8T-8737		White Cavity Plug
30		126-1767		Gold Male Contact 14ga
30		126-1768		Gold Female Contact 14ga
30		9X-3401		Gold Male Contact 20-16ga
30		9X-3402		Gold Female Contact 20-16ga
1		147-6456		Wedge Removal Tool
3		151-6320		Removal Tool
3		121-9587		Removal Tool
